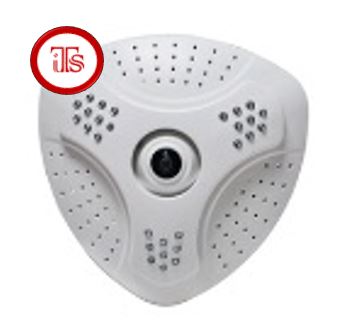

IP FishEye Camera (2MP)

Description

DF0 series IR dome 360 Deg FishEye Audio IP camera Adopting 1.7mm fishEye lens(Default),360 deg visual angle,30pcs 5# ultra -bright IR LED, Mechanical IR-Cut,with night vision of 20-30m;Built-in Audio Function;H.264 compression algorithm,dual bit streams,Support local recording and JPEG snapshot(need TF Card); Motion detection/ e-mail notify/ transmit images to FTP;Cloud monitoring,NAT,One-step to the Internet, Support client/IE/mobile phone remote view/control/setup;support USB exstension 3G,WIFI; Support built-in TF card and POE;Support Onvif standard.

Specification :

IMAGE SENSOR: 1/3” MICRON 1.3M HD CMOS
DSP: NVP2431H+OVTI9712
RESOLUTION: 1000 TV Line
MINIMUM ILLUMINATION: 0.01 Lux F1.2 / 0 Lux F1.2 (IR On)
SCANNING SYSTEM: NTSC: 2:1 Interlace
PAL: 2:1 Interlace
TOTAL PIXELS: NTSC: 1280(H)*720(V)
PAL: 1280(H)*720(V)
ELECTRONIC SHUTTER: NTSC:1/60~1/120,000 sec
PAL: 1/50~1/120,000 sec
SYNC SYSTEM: Internal
WHITE BALANCE: ATW/AWC/Manual
GAIN CONTROL: Auto
B.L.C. FUNCTION: WDR / BLC / OFF Sele
S/N RATIO: 52 dB (AGC OFF)
GAMMA CORRECTION: 0.45
VIDEO OUTPUT: Composite 1.0V p-p at 75 ohm
AUDIO OUTPUT: –
LENS: 3.6,4,6,8,12,16 have Lense: 1
IR LED: 1 PCS Array Infrared Lights
IR DISTANCE: 20M
VISIBLE DISTANCE AT: 0M (Lens 0 mm)
OPERATION TEMPERATURE: -10 to 50ºC
OPERATIONAL HUMIDITY: within 85%RH
POWER SUPPLY: DC12V /1500mA
DIMENSIONS(fXH): 114*114*75/120*120*89 MM (N/P)
Weight-Net: 0.2/0.28/0.5 KG(N/G/Total)
